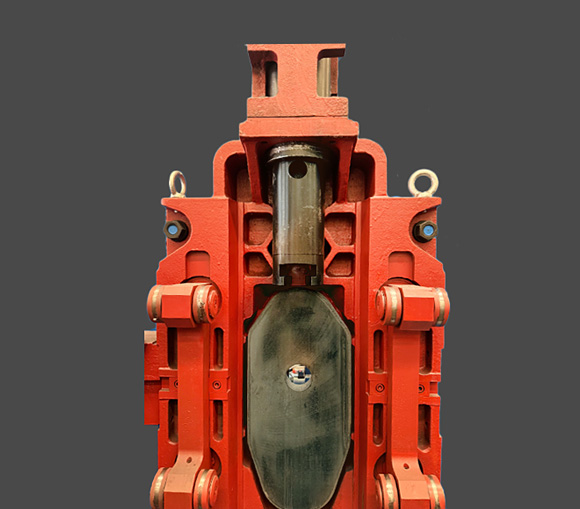

Slide Gate Mechanism

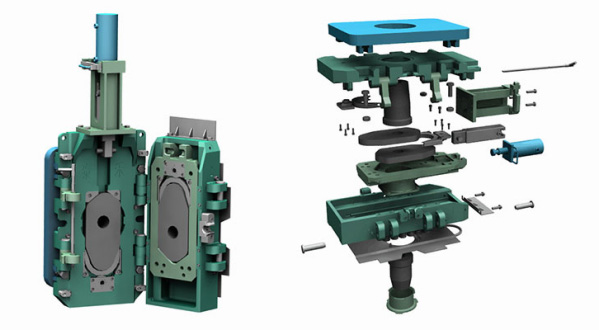

The ladle slide gate mechanism consists of a base, support frame, slide block, spring assembly, and drive assembly. The mechanism is divided by the upper and lower slide plates as the interface, with the base and support frame being the fixed parts, and the slide block being the movable part. The upper nozzle brick and upper slide plate brick are fixed within the base and remain stationary, while the lower slide plate brick and lower nozzle brick are fixed within the slide block. The slide block can move back and forth within the support frame. A constant and uniform interface pressure is established at the moving interface through the spring assembly, and the power source drives the slide block to move reciprocally via the drive assembly, thereby achieving throttling control of the molten steel.

Send Message →

Technical Data

Mechanism model	Aperture (mm)	Stroke(mm)	Slide Pressure (Mpa)	Slide Length（mm）	Pressure Method	Applicable Ladle（T）
RJG-55N1(N2)	Φ55	110	≥0.5	310	Automatic Pressing	30-50
RJG-60N1(N2)	Φ60	120	≥0.7	360	Automatic Pressing	50-80
RJG-70N1(N2)	Φ70	150	≥0.7	410	Automatic Pressing	80-150
RJG-60N3	Φ60	120	≥0.8	310	Automatic Pressing	50-80
RJG-70N3	Φ70	150	≥0.8	360	Automatic Pressing	80-150
RJG-80N3	Φ80	180	≥0.9	440	Automatic Pressing	150-260

Structural features:
◆ Hydraulic cylinder drive, upper and lower door frame structure;
◆ High temperature resistant spiral spring, heat insulation design;
◆ Automatic pressurization technology between slide plates;
◆ High safety performance;
◆ Simple operation and convenient maintenance.

Application range:
Widely used in 50-120 ton small and medium-sized steel ladles, can meet the requirements of 3 continuous slide plates.
