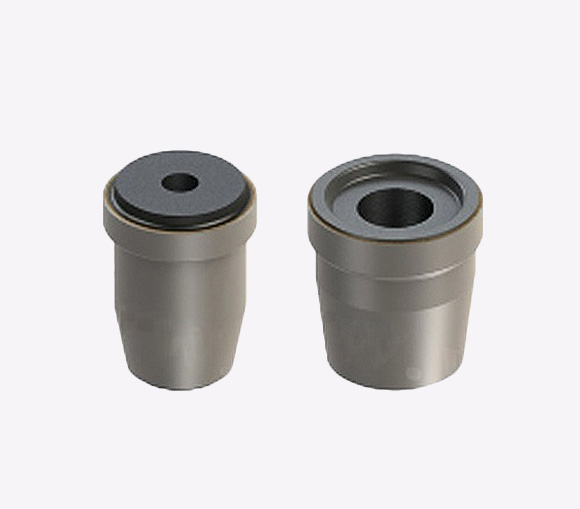

Ladle Collector Nozzle
JISteel has developed and produced ladle collector nozzles using tabular alumina, flake graphite, antioxidants, phenolic resin, and other materials. These nozzles exhibit excellent thermal shock stability, strong erosion resistance, high corrosion resistance, and are less prone to cracking.
Technical Data
| Item | Alumina-carbon | Corundum | ||
|---|---|---|---|---|
| XK-65 | XK-75 | XK-85 | XK-90 | |
| Al2O3,%≥ | 65 | 75 | 85 | 90 |
| C,%≥ | 3.0 | 2 | 2 | — |
| Bulk Density,g/cm2≥ | 2.70 | 2.80 | 2.90 | 3.00 |
| Apparent porosity,%≤ | 14.0 | 12 | 12 | 20 |
Recommended Product

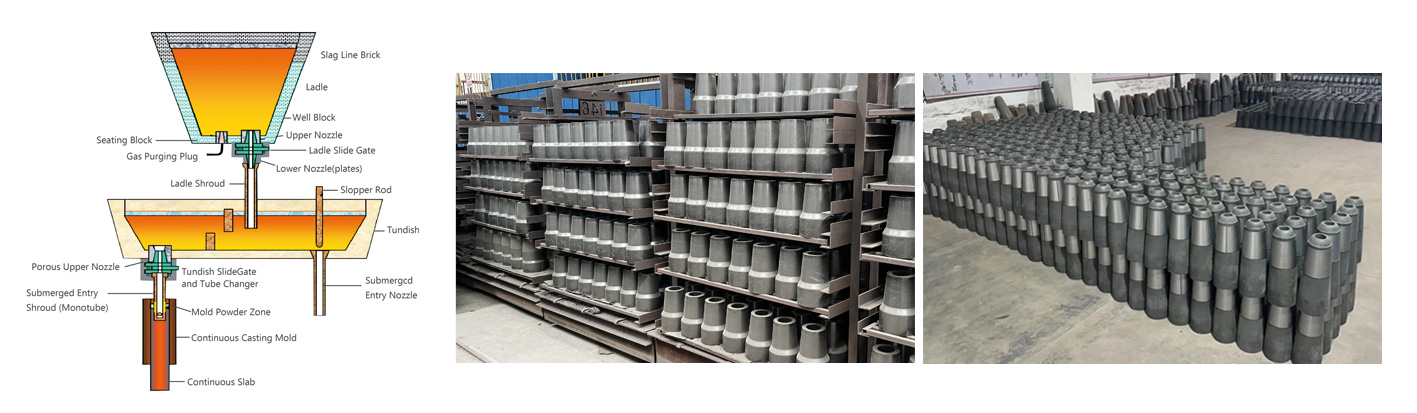

Ladle Inner Nozzle
For steel plants, the service life of the ladle inner nozzle significantly impacts the lifespan of the ladle ….
View →

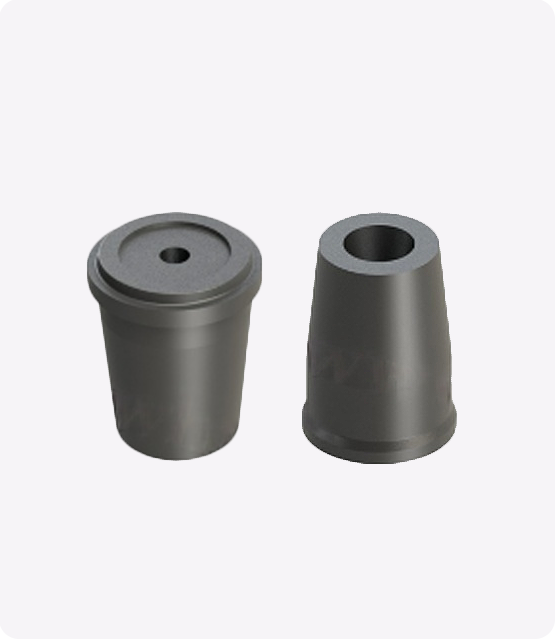

Tundish Nozzle
Tundish nozzle is a refractory component used in the continuous casting process of steelmaking.
View →

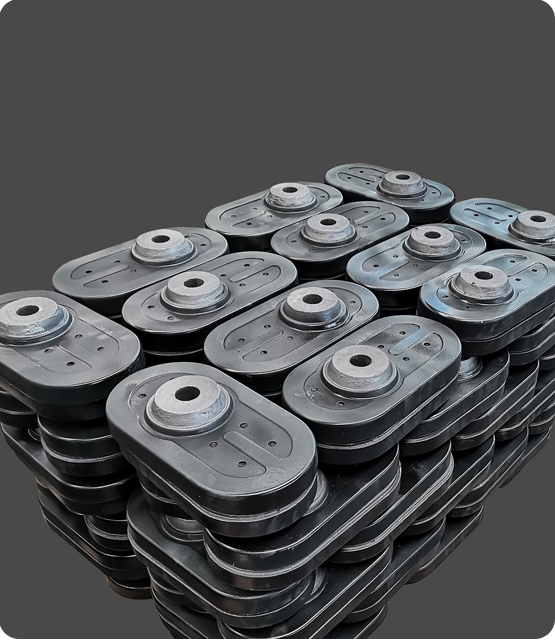

Slide Gate Plate
Slide Gate Plate is a key refractory material used in the ladle sliding nozzle system…
View →

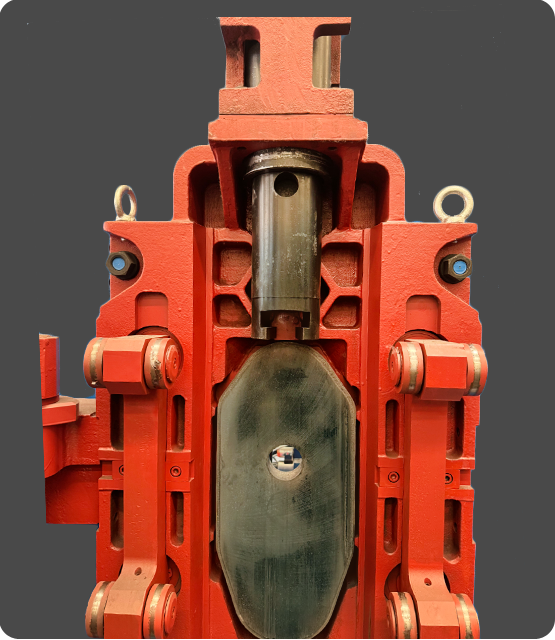

Slide Gate Mechanism
